Pinout GEN 2 new

[EcuFixx]

• ​

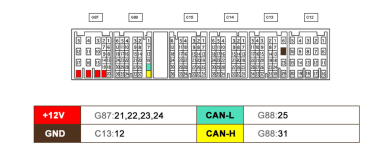

  Toyota Hilux/Fortuner/Revo 1GD-FTV, 2GD-FTV (06.2015 - NOW)​

  ​



[EcuFixx]

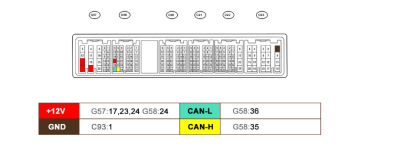

Toyota Hilux/Fortuner/Revo 1GR-FE (06.2015 - NOW)​

​



[EcuFixx]

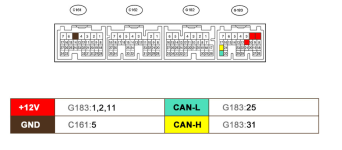

Toyota Hilux/Fortuner/Revo 1KD-FTV, 2KD-FTV AT(06.2015 - NOW)​



[EcuFixx]

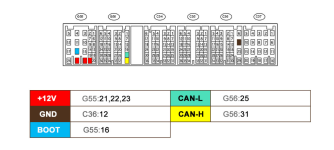

Toyota Hilux/Fortuner/Revo 5L-E (06.2015 - NOW)​



[EcuFixx]

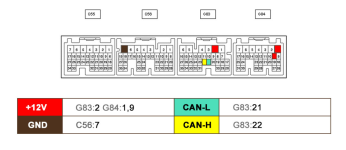

Toyota Hilux/Fortuner/Revo 1TR-FE, 2TR-FE (06.2015 - NOW)
​



[EcuFixx]

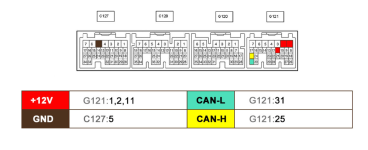

Toyota Land Cruiser Prado 1GR-FE (06.2015 - NOW)​

1KD-FTV (06.2015 - 08.2020)​

​

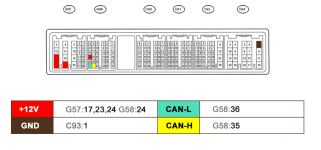

1GD-FTV (06.2015 - NOW)​

​

5L-E (06.2015 - NOW)​

​

2TR-FE (06.2015 - NOW)​
